PDO Series Crusher

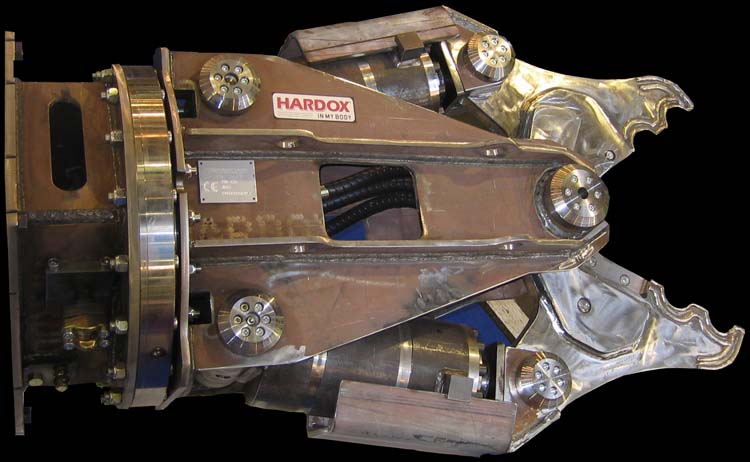

PDO Crusher

EEI-Socomec presents the new crushers series for excavators from 1.7 up to 13 tons.

POWERFUL

RELIABLE

VERSATILE

The PDO series crushers are hydraulically powered by only two hydraulic hoses. Opening, closing and rotation are activated by using one electric solenoid valve. All models have a continuous 360° rotation. Manufactured using Hardox® 400.

MODEL PDO 200 PDO 300 PDO 650

Weight in working conditions lbs 440 660 1430

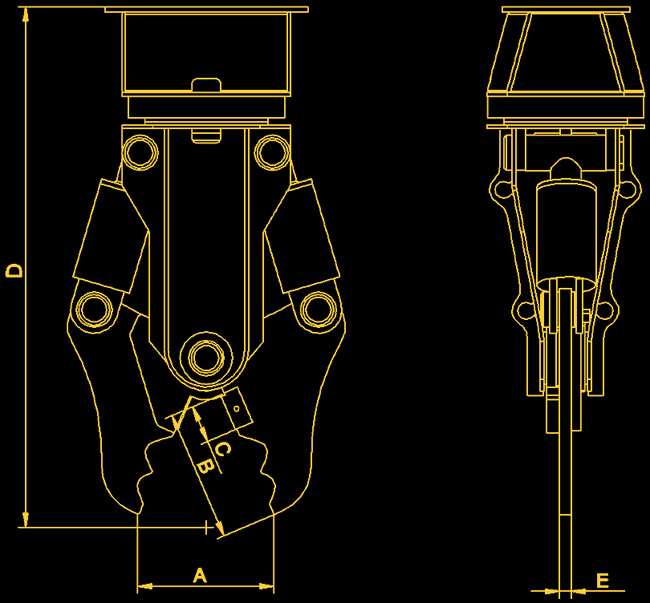

A inch 14 14 20

B inch 14 14 16

C inch 3 ¼ 3 ¼ 6 ¼

D inch 45 49 60

E inch 1 1 ¼ 1 ½

Cylinder force t 20 30 50

Cylinder force t 15 22 35

Cutter force t 40 70 100

Max pressure psi 2900 3600 4000

Recommended working pressure psi 2600 3300 3600

Oil flow g/min 8 14 16

Rotation Hydraulic 360°

Rotation pressure psi 2900 3600 2000

Rotation oil flow g/min 8 14 15

Excavator weight t 1,7-3 3-6 6-13

MODEL		PDO 200	PDO 300	PDO 650
Weight in working conditions	lbs	440	660	1430
A	inch	14	14	20
B	inch	14	14	16
C	inch	3 ¼	3 ¼	6 ¼
D	inch	45	49	60
E	inch	1	1 ¼	1 ½
Cylinder force	t	20	30	50
Cylinder force	t	15	22	35
Cutter force	t	40	70	100
Max pressure	psi	2900	3600	4000
Recommended working pressure	psi	2600	3300	3600
Oil flow	g/min	8	14	16
Rotation	Hydraulic 360°
Rotation pressure	psi	2900	3600	2000
Rotation oil flow	g/min	8	14	15
Excavator weight	t	1,7-3	3-6	6-13
